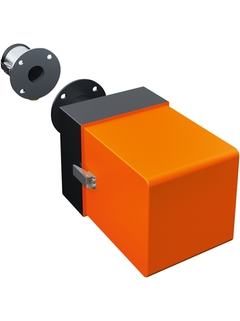

>DUSTHUNTER T50 particle measuring device
-
Measured variables
Transmittance, opacity, relative opacity, extinction, dust concentration
-
Process temperature
–40 °C ... +600 °C
-
Measuring range
Transmittance :100 ... 50 % / 100 ... 0 %
Opacity: 0 ... + 50 % / 0 ... 100 %
Relative opacity: 0 ... + 50 % / 0 ... 100 %
Extinction: 0 ... + 0.3 / 0 ... 1
Dust concentration: 0 ... + 200 mg/m³ / 0 ... 10,000 mg/m³
The measurement depends on measuring distance and dust properties
- Посмотреть все характеристики
Область применения
The DUSTHUNTER T50 is an economic measuring device for dust at medium to high concentrations in gases above the dew point. Transmittance is the basic measuring value. Opacity and extinction can be calculated and displayed as well as the dust concentration after gravimetric calibration.
Emission monitoring in heating systems
Monitoring of dust concentrations upstream of filter systems
Dust concentration measurements in cement plant
Device properties:
For medium to high dust concentrations
Automated thorough check of zero and reference point
For low to medium measuring distances
