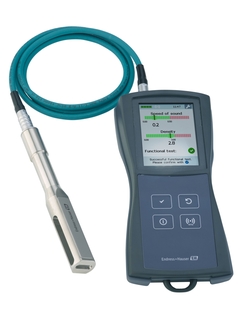

>Teqwave T – Ultrasonic concentration meter
-
Диапазон измерения
Concentration According to concentration app data sheet, maximum 0 to 100 %
Sound velocity 600 to 2000 m/s
Temperature maximum 0 to +100 °C (32 to +212 °F)
Acoustic Density 0.7 to 1.5 g/cm³ -
Макс. погрешность измерения
Density: ±0.01g/cm³ (internal variable)
Temperature: ±0.5K
Sound velocity: 2m/s (internal variable) -
Диапазон температур продукта
0 ... 100 °C
-
Рабочая температура
0 to 100 °C (32 to 212 °F)
-
Смачиваемые материалы
Stainless steel1.4571 (316 Ti)
- Посмотреть все характеристики
Область применения
The portable Teqwave T offers the most flexible application possibilities for temporary in situ liquid analysis in your plant or laboratory. With just one device, you can monitor concentration values at various measuring points and thus maximize your product quality at minimum operational expenditure. The mobile transmitter with its pre-configured measuring points allows you to use Teqwave T perfectly matched to your production needs.
The acoustic waveguide measures precisely and reliably, even the smallest changes are detected
Temporary concentration measurement of liquids at various measuring points in plant & laboratory
Device properties
Insertion length: 180 mm (7 in)
Accurate and independent of flow profile
Robust, portable transmitter with Li-ion battery 2300 mAh
Large color display with 4 operating keys
Integrated data storage for max. 3000 measured values
