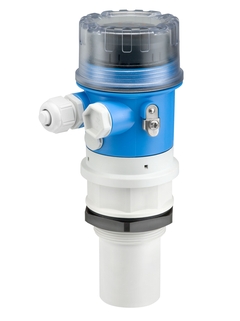

>Ultrasonic measurementTime-of-FlightProsonic FMU30
-
Погрешность
+/- 3 мм или +/- 0,2 % от установленного диапазона измерений
-
Рабочая температура
-20 °C...60 °C
(-4 °F...140 °F) -
Рабочее давление абс. / макс. предел избыточного давления
0,7 ... 3 бар абс
(10 ...44 psi) -
Макс. значение измерения
Датчик 1-1/2": 2 м (6,6 фута)
Датчик 2" : 3,5 м (11 футов) -
Смачиваемые части
PP/EPDM
- Посмотреть все характеристики
Область применения
The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.
Two-wire instrument for continuous non-contact level and flow measurement.
Process connection: Thread
Temperature: -20 to +60°C (-4 to +140°F)
Pressure: +0.7 to +3bar (+10 to +44psi)
Maximum measuring distance:
Sensor 1½" for liquids 5m (16ft) and for bulk solids 2m (6.6ft),
Sensor 2" for liquids 8m (26ft)and for bulk solids 3.5m (11ft)Blocking distance:
Sensor 1½" 0.25m (0.8ft),
Sensor 2" 0.35m (1.15ft)International explosion protection certificates
